Opinion: A Fresh Look at Elecrow’s ESP32-S3 Rotary Displays for DIY and IoT Projects
The realm of modern embedded systems is constantly evolving, and sometimes it can feel like you’re trying to figure a path through a maze of tangled issues and confusing bits. When Elecrow launched its new ESP32-S3 rotary displays—available in both 1.28-inch and 2.1-inch variants—it immediately grabbed the attention of makers, developers, and tech enthusiasts. These devices offer a round IPS touchscreen paired with a rotary knob and integrated press input. In this editorial, we take a closer look at these innovative interfaces, weigh their potential benefits and challenges, and consider what they might mean for DIY projects, smart home devices, and industrial prototypes.
It’s not every day that you see display modules that combine multiple input methods in one compact design. The Elecrow rotary displays are designed to run on the Espressif ESP32-S3, a chip known for its dual-core capabilities and support for Wi-Fi and Bluetooth. As we dig into the details, we will consider both the obvious appeal of having an all-in-one solution and the subtle, sometimes nerve-racking, trade-offs that come with advanced hardware integrations.
Exploring the Device’s Key Features
One of the most appealing aspects of the Elecrow devices is their multitasking control interface. Both models feature an IPS capacitive touchscreen that not only provides crisp visuals but also handles touch inputs with excellent sensitivity. The rotary control, equipped with both rotation and press capabilities, is another key feature. This combination is geared specifically toward enhancing user interaction for DIY projects and industrial applications.
Technical Specifications at a Glance
Taking a closer look at the technical data reveals a well-rounded device built to cater to a variety of applications. Below is a summary table that compares the core specifications of both display sizes:
Specification | 1.28-inch Model | 2.1-inch Model |
---|---|---|
Display Resolution | 240 x 240 | 480 x 480 |
SoC | ESP32-S3R8 | ESP32-S3R8 |
Processor Speed | Dual-core Xtensa LX7 @ up to 240 MHz | Dual-core Xtensa LX7 @ up to 240 MHz |
Memory | 512 KB SRAM, 8 MB PSRAM | 512 KB SRAM, 8 MB PSRAM |
Wireless | Wi-Fi 4 (802.11 b/g/n), Bluetooth 5.0 LE | Wi-Fi 4 (802.11 b/g/n), Bluetooth 5.0 LE |
Power | 5V/1A input via USB-C | 5V/1A input via USB-C |
Expansion Interfaces | UART, I²C, FPC connector | UART, I²C, FPC connector |
Operating Temperature | -20°C to 65°C | -20°C to 65°C |

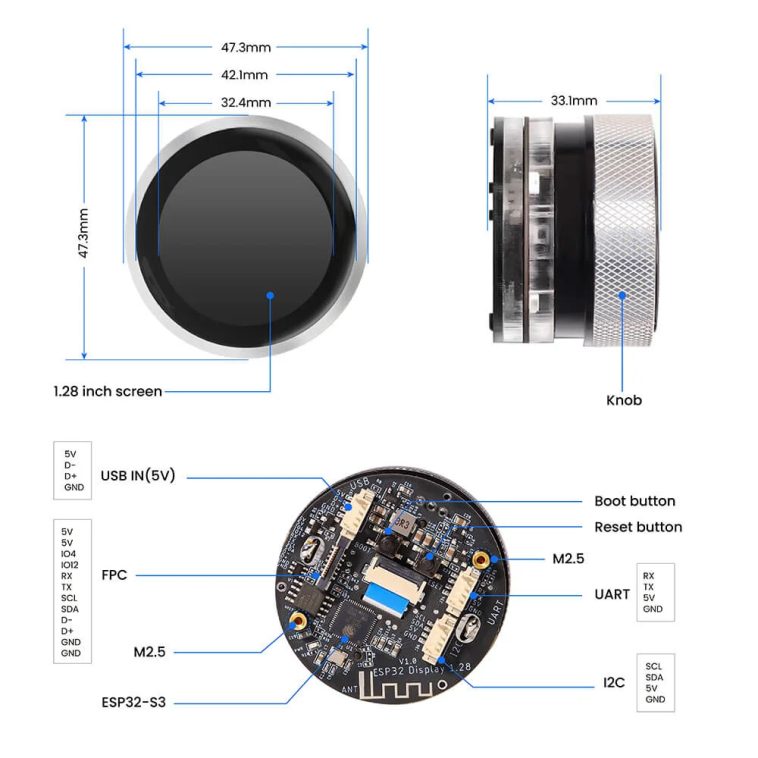

Dimensions & Weight | 48 × 48 × 33 mm, 50 grams | 79 × 79 × 30 mm, 80 grams |
This table summarises the key points, making it easy to compare the two models side by side. While the 2.1-inch version offers a higher resolution and larger display area, both are built on the same robust hardware foundation. This factor is especially important for developers who need to balance size against functionality in their projects.
Diving into the Benefits for DIY and Embedded Applications
When you work on DIY projects or build prototypes for smart home appliances and industrial control systems, having interfaces that are super important to user experience is key. The Elecrow rotary displays are especially attractive because they bring together multiple control options into one device. For instance, the combination of capacitive touch and rotary input isn’t just about having extra buttons—it opens up a realm of possibilities for designing intuitive UI systems that are easy to operate even in tricky, compact applications.
User-Friendly Interface Design
From an interface design perspective, these rotary displays could be described as a breath of fresh air. Many conventional modules focus solely on touch inputs, which, while effective, sometimes lack the tactile feedback that a rotary knob provides. Many users enjoy the satisfying “clicky” feel of turning a knob, which reinforces a physical connection with the device. Even though some users have expressed an interest in a clicky option, the smooth feel of these rotary displays is a design choice that could appeal to various integration cases where a smooth transition in digital control is desired.
Here are some bullet points that succinctly cover the pros:
- Dual-input options allow for versatile user interaction.
- Robust wireless capabilities facilitate rapid IoT prototyping without additional modules.
- The compact size and lightweight design make them perfect for space-constrained applications.
- The ability to program using multiple platforms (Arduino IDE, ESP-IDF, MicroPython, etc.) offers great flexibility.
- Support for advanced graphical libraries like LVGL and SquareLine Studio opens the door to highly customized UIs.
Integration with Modern Software Frameworks
For developers, choosing a module that is compatible with a variety of programming environments is a super important consideration. Many embedded interfaces can be intimidating at first due to the nerve-racking complexities of integrating different software platforms together. The Elecrow displays, however, support a variety of development frameworks—ranging from Arduino IDE and ESP-IDF to MicroPython and PlatformIO. Such compatibility lowers the barrier for entry and makes it easier for a wide range of developers to get into IoT prototypes, smart home appliances, and industrial applications.
This multi-platform support is key in a landscape that is loaded with different programming contests, as it allows developers to quickly switch between development environments without having to do a massive rewrite of the code. Additionally, supporting graphics libraries such as LVGL assists designers in tackling those tiny details that elevate the final product’s look and feel. Whether you’re a hobbyist or a seasoned engineer, having these options helps you figure a path through the otherwise twisting landscape of embedded systems development.
Price Considerations and Market Impact
Another important aspect that cannot be ignored is the pricing strategy chosen by Elecrow. With the 1.28-inch model available at around $37.99 on AliExpress (or even lower from the Elecrow store) and the 2.1-inch variant at roughly $43.99, these devices are positioned in a range that seems competitive for high-quality embedded systems modules.
In the realm of embedded interfaces, price is a super important factor. DIY enthusiasts and small-scale developers alike must often work within a tight budget. The relatively low cost of these modules, coupled with their rich feature set, may well encourage a shift in how new products are designed. The fact that these displays offer a seamless integration of control options in a price range that doesn’t break the bank is likely to prompt more innovation among makers.
Comparative Perspectives on Cost and Features
To assist in visualizing the pricing advantages versus features, consider the following table:
Model | Price Range (USD) | Main Features |
---|---|---|
1.28-inch Rotary Display | $29.00 – $37.99 | Compact design, suitable for small-scale projects, basic touch and rotary input |
2.1-inch Rotary Display | $35.70 – $43.99 | Higher resolution, larger interface for more complex UIs, ideal for industrial prototype development |
This quick comparison shows that while there is a slight premium for the larger screen, both models are quite accessible. For many makers working with a constrained budget, these pricing points are inviting avenues to experiment with next-generation user interfaces.
Challenges and the Tricky Parts of Integration
No product is without its tangled issues, and the Elecrow rotary displays are no exception. While the idea of having both a touchscreen and a rotary knob is appealing, integrating these components into a seamless user experience can sometimes present confusing bits for developers.
Hardware Integration and Troubleshooting
Working with any cutting-edge device can involve wrestling with some tricky parts. For instance, getting the touchscreen calibration right might involve a few nerve-racking sessions of software tweaking. Similarly, if you are planning to incorporate the rotary input into a custom UI, you may need to dip into the nitty-gritty of the available drivers and libraries. Although comprehensive documentation and community support are available, there are moments when it becomes a challenge to figure a path through the underlying code.
Below are some common challenges and possible solutions when integrating advanced displays like these:
- Calibration Confusion: The touch sensitivity and rotary accuracy must be balanced. It might help to use example libraries provided by Elecrow along with community-tested modifications.
- Power Management: Using a 5V/1A USB input is straightforward, but developers must ensure that any expansion via UART or I²C does not overload the module.
- Software Bugs: Transitioning from one development environment to another (say, Arduino IDE to ESP-IDF) can sometimes expose subtle parts that require debugging.
Taking a methodical approach—such as testing one function at a time and cross-verifying with sample code—can help streamline the process when confronted with these tricky bits. Community forums also serve as a key resource for troubleshooting and exchanging tips.
Maintaining Flexibility in Design with Open-Source Options
An advantage that stands out in the current tech climate is the embrace of open-source tools and frameworks. The Elecrow rotary displays support not only proprietary development environments but also open tools like ESPHome for Home Assistant integration. This flexibility is critical for developers who need to adapt designs based on rapidly shifting project requirements.
Some of the benefits of open-source software integration include:
- Wide community support that can help untangle confusing bits.
- Flexibility to modify and experiment with the code.
- A vast repository of shared solutions for common problems.
- Opportunities to contribute improvements back to the community.
Even though diving into open-source frameworks can sometimes feel overwhelming, many find that the benefits far outweigh these initial struggles. The available resources can ease the process of making your way through the tangled issues that arise in professional and hobbyist projects alike.
Real-World Applications and Practical Use Cases
Let’s take a closer look at some practical applications where these rotary displays can have a significant impact. From smart home appliances to industrial control panels, the integration of a round IPS touchscreen with a rotary knob can offer an intuitive user interface. Here are some scenarios where these displays can be game-changers:
Smart Home Control Panels
Imagine a central control panel for your smart home where you can adjust lighting, control your thermostat, and monitor security systems—all from one interface. The combination of touch and rotary inputs allows for fine control without sacrificing ease of use. Instead of scrolling through endless menus on a small smartphone screen, a dedicated device like this can simplify your interactions.
Benefits for smart home projects include:
- Enhanced user experience with dual-input methods.
- Integration with Home Assistant via ESPHome for seamless automation.
- Compact size, which allows for discreet placement in various rooms.
This type of integrated panel provides a super important improvement over traditional, single-input devices, making the entire interaction more intuitive and less off-putting to less tech-savvy users.
Industrial Control Systems
Industrial environments often require a robust and protective interface that can handle a bit of rough treatment without compromising on performance. The Elecrow displays could potentially be mounted on industrial control panels where the combination of ambient lighting, capacitive touch, and tactile rotary inputs offers both safety and usability.
Key factors include:
- Durability: The aluminum alloy, plastic, and acrylic shell are built for reliability under less-than-ideal conditions.
- Temperature Tolerance: Operating temperatures from -20°C to 65°C allow for use in a variety of industrial climates.
- Expansion Capabilities: UART, I²C, and FPC connectors smooth the process of integrating additional sensors or subsystems within the overall control system.
While integrating these displays into existing industrial systems might initially seem intimidating, the long-term benefits of having a multi-functional, easy-to-use interface can simplify daily operations and even reduce training time for operators.
IoT Prototyping and Development
For tech enthusiasts and professional developers alike, creating an IoT prototype is all about speed, flexibility, and access to reliable data. The ESP32-S3 chip is a staple in many IoT devices because it offers built-in connectivity and processing power. These rotary displays pair perfectly with that ethos—providing a quick and easy interface to test ideas, display sensor data, and control various outputs.
Practical advantages for IoT prototyping include:
- Integrated wireless connectivity for immediate data exchange.
- Multiple development firmware options including Arduino IDE and MicroPython that allow you to customize your project quickly.
- Compact form factor aids portability, making it easier to test devices in the field.
This dual-input solution can serve as the centerpiece of an IoT project, enabling you to manage functions and access real-time data without having to rely on additional external displays or complicated control setups.
Future Prospects and Industry Implications
Looking ahead, the impact of devices like the Elecrow ESP32-S3 rotary displays goes beyond just a single project or application. By converging multiple input modalities into one compact package, these displays are setting a trend for the next generation of user interfaces in embedded systems.
This shift in design philosophy could influence several areas:
- Enhanced User Experience: As smart devices become more ingrained in everyday life, the demand for interfaces that are easy to use and understand will rise. Combining touch with tactile rotary input offers a more comprehensive method to interact with devices.
- Streamlined Prototyping: With a device that supports a range of development environments, the traditionally nerve-racking task of integrating hardware and software becomes a bit more manageable. This encourages more rapid innovation and experimentation.
- Cross-Industry Adoption: From consumer electronics to robust industrial machines, this kind of multiplatform display module is versatile enough to be adapted for various sectors, potentially influencing design standards industry-wide.
For these reasons, it is super important to appreciate how seemingly small decisions in hardware design can have lasting effects on the broader technology ecosystem. By reducing the number of separate components needed in a project, the Elecrow rotary displays may pave the way for more streamlined and cost-effective IoT solutions.
Reflections on the Developer Community
One of the more subtle parts of this technological advancement is the impact it has on the community of makers and engineers. Developers who have long struggled with the fine points of integrating separate touch and control modules might find that this all-in-one design reduces the number of little twists and turns they need to figure out.
Many professionals have expressed relief at being able to use a single module for multiple functions. The ability to dive into various software frameworks without overhauling your entire system is something that both hobbyists and industry professionals can appreciate. This kind of modularity is sure to lead to more inventive projects and inventive solutions.
As developers experiment and share their experiences in online forums and maker communities, it is likely that best practices will emerge that can help others get around the trickier aspects of the integration process. In many ways, each new product like this serves as a stepping stone, helping to refine and improve the development process over time.
Practical Tips for Getting Started
For anyone interested in taking the wheel and exploring what the Elecrow rotary displays have to offer, here are some ways to get started:
Set Up Your Development Environment
Before you even start soldering or coding, make sure you have your development environment ready. Depending on your familiarity, you might choose from:
- Arduino IDE for its user-friendly interface
- ESP-IDF for more control over hardware performance
- MicroPython for quick prototyping without getting bogged down in complex code
- PlatformIO as an all-in-one solution if you like integrated development environments
Getting into one of these environments can help you poke around and quickly iterate on your ideas. Each has its own subtle details, so taking the time to set up and trial a simple “Hello World” project can be a great way to ease into more complicated pieces.
Experiment with the LVGL Graphics Library
If you’re looking for a way to design custom user interfaces, the support for the LVGL graphics library is one of the kit’s most compelling features. LVGL allows you to design interfaces that are both visually appealing and interactive—without needing to start from scratch.
Here’s a simple checklist to guide you through your UI setup:
- Install LVGL: Download and integrate the library into your chosen development environment.
- Start Small: Begin with a basic layout and gradually add interactive elements.
- Test Rigorously: Use debug tools to address any tricky parts that may arise from combining touch inputs with rotary navigation.
- Iterate: Refine your design based on user feedback to get the best balance between aesthetics and usability.
This approach not only helps you manage the project step by step but also enables you to appreciate the hidden complexities of modern UI design without being overwhelmed by them.
Key Takeaways and Final Thoughts
In reflecting on Elecrow’s ESP32-S3 rotary displays, several super important points come to light. These devices are not just another piece of technology—they represent an evolution in how we interact with embedded systems. By combining capacitive touch, rotary input, and press functionality into a compact module that supports multiple software development environments, Elecrow offers a new way to tackle those likely intimidating aspects of advanced UI design.
While there are only a few tangled issues to be resolved—like fine-tuning the calibration or tweaking the software integration—the overall prospects remain bright. The affordability and flexibility of these modules make them an enticing option for everyone from DIY hobbyists to seasoned engineers exploring the future of IoT devices and smart appliances.
Furthermore, by offering compatibility with such a wide array of development frameworks, Elecrow is not only making it easier to get started with modern controls but is also paving the way for future innovations. The ability to mix tactile interactions with visual feedback in a single package is a design philosophy that many believe will become a standard in the industry.
To sum up, here are the essential benefits of these rotary displays:
- Integrated Input Methods: Combines touch and rotary input for versatile user interaction.
- Wide Compatibility: Runs on multiple development platforms, reducing the learning curve.
- Competitive Pricing: Offers attractive price points that lower the barrier to entry for DIY projects.
- Robust Design: Engineered with industrial-grade materials that promise durability under challenging conditions.
- Future-Proofing: Supports future advancements and cross-industry applications through its flexible design framework.
For those who plan to dive into the world of embedded systems, these devices might well be the tool that helps you steer through the often confusing bits and find your way across innovative lands. Whether you choose to use the smaller 1.28-inch model for a compact project or the larger 2.1-inch version for something more demanding, you’re likely to discover that combining multiple input methods into a single module can simplify your workflow and spark new ideas.
Ultimately, while every new piece of technology comes with its own set of off-putting challenges and complicated pieces, the potential rewards of embracing integrated solutions like the Elecrow ESP32-S3 rotary displays are enormous. They empower you to experiment, iterate, and ultimately create devices that feel both modern and intuitive.
As the technology landscape continues to evolve—filled with its own twists and turns—it’s super important not only to keep pace with incremental improvements but also to embrace innovations that simplify our journey through the sometimes nerve-racking world of embedded systems. For hobbyists, engineers, and industry professionals alike, these rotary displays provide a promising glimpse into the future of user interfaces that are both functional and user-friendly.
In closing, take a moment to consider how merging advanced control features with accessible development platforms can redefine your next project. Whether you’re a maker trying to build the ultimate DIY smart home controller or an industrial designer looking for a compact yet powerful interface, products like Elecrow’s ESP32-S3 rotary displays are proving that thoughtful innovation can indeed make it easier to navigate the tricky parts of modern electronics design.
As we all continue to experiment and refine our own projects—learning from each twist, turn, and hidden complexity—it is reassuring to see newer, more integrated modules lighting the way forward. These clever devices remind us that even in an industry loaded with challenges, there’s always room for designs that simplify, inspire, and fundamentally enhance the way we interact with technology.
This is just the beginning. With the continued support from a vibrant community and the drive for open innovation, the future looks promising for everyone involved in shaping the next generation of smart, connected interfaces.
